PRODUCTS

CAMERAS

bullet plastic 2.8MM

Model :KBCP20HTC200F

Video Output Mode AHD/TVI/CVI: 2M@30fps/25fps

Image Sensor 1/3" CMOS Sensor

Image Resolution 2M:1920*1080

TV System PAL/NTSC

Electronic Shutter Auto

Minimun Illumination 0.01Lux

Scanning System Progressive Scan

Lens

Focus Length Board Lens 2.8mm

Focus Control Fixed

Lens Type Fixed

Night Vision

IR Cut Filter YES

Infrared LED 14µ x18PCS

Infrared Distance 20M

IR Status AGC Auto Control

Day/Night YES

OSD Menu Language YES

Dimension 160.8(W) x 62(H) x 62(D)mm

Weight 380g

bullet metal 2.8mm

Model:KSBAHTC500FEHW

Waterproof

Video Output Mode AHD/TVI: 5M@20fps/12.5fps,

4M@30fps, 2M@30fps;

CVI: 4M@30fps, 2M@30fps

Image Sensor 1/3" CMOS Sensor

Image Resolution 5M:2592*1944 4M:2560*1440

2M:1920*1080

TV System PAL/NTSC

Scanning System Progressive Scan

Lens Focus Length Board Lens 2.8mm

IR Cut Filter NO

Infrared LED No

Support Warm light LED double3015U×2

Power Source DC12V±10%,450mA

Dimension 72 x66x175

Weight 750g

dome metal ip night color

Model :IPSU20HP200

Image Sensor IMX327

Main processor Hi3516C

Resolution 2MP 1080P

Effective Pixels 1945(H)*1097(V)

Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System PAL/NTSC

Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio ≥52dB

Scanning System Progressive

Video Output Network

Lens

Focus Length Board Lens 2.8mm

Focus Control Fixed

Lens Type Fixed

Pixels 3M

Night Vision

Infrared LED 14µ x 18PCS

Infrared Distance 20M

Dimension ￠93 x 74(H) mm

Weight 400

HYBRID XVR

5-in-1 Hybrid DVR + NVR

XVR 4+4

4 CHANNEL

XVR430 - AHD/CVI/TVI/IP/ Network, P2P

Model XVRHCT430

System

Main Processor MC6630

Operating System Embedded LINUX

DIY Video Input: HD includes AHD, HD-CVI, HD-TVI HD: Max 8CH@15fps / IPC: Max 16CH@30fps / Analog: Max 8CH@30fpsPreview resolution: 5M/4M/3M/1080P/720PPlayback: Support HD camera 1/4/8CH@main stream.H.265/H264 Video CompressionBackup with USB & NetworkSupport Remote Operation by Smart PhoneSupport Multi-Channel Operation Support Web & VMS Platforms

XVR 8+8

8 CHANNEL

XVR830 - AHD/CVI/TVI/IP/ Network, P2P

Model:XVRCT830

System

Main Processor MC6630Operating System Embedded LINUX

DIY Video Input: HD includes AHD, HD-CVI, HD-TVI HD: Max 8CH@15fps / IPC: Max 16CH@30fps / Analog: Max 8CH@30fps

Preview resolution: 5M/4M/3M/1080P/720P

Playback: Support HD camera 1/4/8CH@main stream.

H.265/H264 Video Compression

Backup with USB & Network

Support Remote Operation by Smart Phone

Support Multi-Channel Operation

Support Web & VMS Platforms

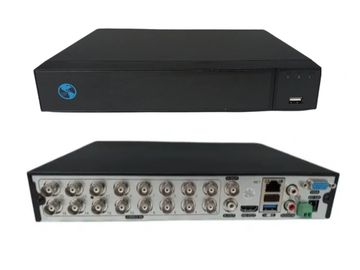

XVR 16+16

16 CHANNEL

XVR1631 - AHD/CVI/TVI/IP/ Network, P2P

Model: XVRHCDA163

System

Main Processor HI3531D Operating System Embedded LINUX

DIY Video Input: HD includes AHD, HD-CVI, HD-TVI HD: Max 8CH@15fps / IPC: Max 16CH@30fps / Analog: Max 8CH@30fps

Preview resolution: 5M/4M/3M/1080P/720P Playback: Support HD camera 1/4/8CH@main stream.

H.265/H264 Video Compression

Backup with USB & Network

Support Remote Operation by Smart Phone

Support Multi-Channel Operation

Support Web & VMS Platforms

For more info call 001-561-827-8115

MODEL 4K

4CH BULLET KIT HD

COMPLETE KIT FOR HOME OR BUSINESS

4 CHANNEL HYBRID XVR MODEL XVRCT 430KT

4 HD CAMERAS BULLET METAL 2.8MM / 1080P

MOUSE

POWER SUPPLY

SPLITTING 1-4

4CABLE (65 FT)

READY FOR INSTALATION

4CH DOME KIT HD

4CH BULLET KIT HD

COMPLETE KIT FOR HOME OR BUSINESS

4 CHANNEL HYBRID XVR MODEL XVRCT 430KT

4 HD CAMERAS DOME METAL 2.8MM / 1080P

MOUSE

POWER SUPPLY

SPLITTING 1-4

4CABLE (65 FT)

READY FOR INSTALATION

8 MEGAPIXEL IPC 4K

1/1.8'' OmniVision CMOS sensor HISILICON HI3516A, WDR, 3D NR; With IR-CUT Main Stream: 8M@20fps, 6M/5M/4M/1080P@30f

4 K MONITOR

8 MEGAPIXEL IPC 4K

Screen type: LED Screen ratio: 16:9 Brightness: 500nit Contrast ratio: 30000:1 Response time: 5 ms Visual area: 699.3*396.4 Viewing angle: 160°/ 170° Display color: 16.7M Clearness: 3840*2160 Control method: panel infrared
